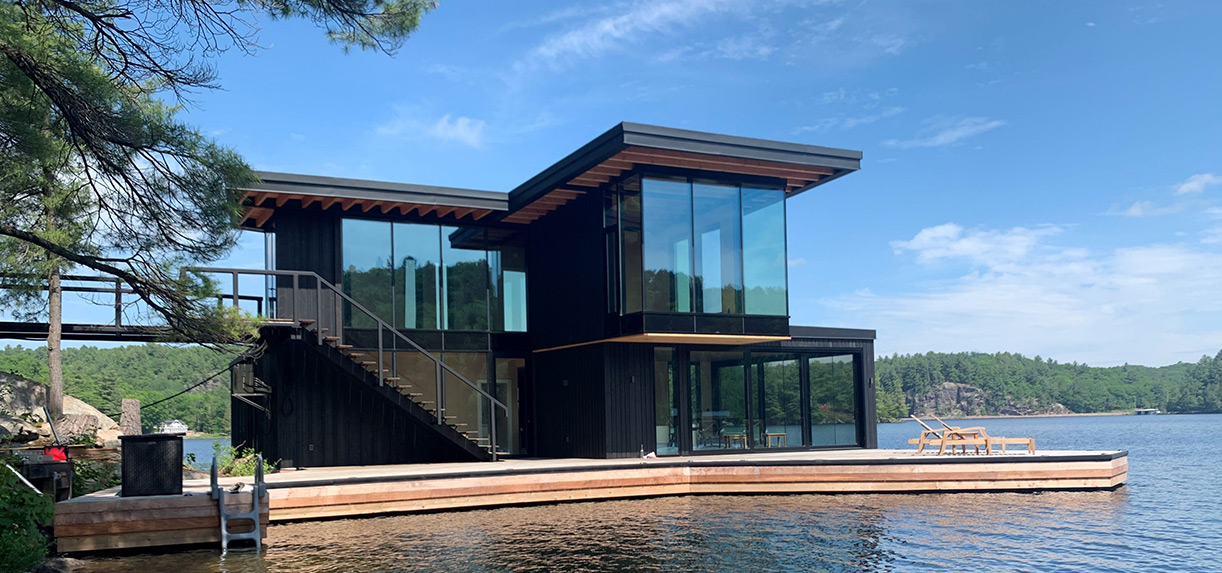

Boat House
Each project reflects our commitment to precision, innovation, and lasting quality in aluminum solutions—tailored to meet every architectural vision.
Location
Canada
Consultant
–
Contractor
Verlass Architectural Freedom
Type of Work
Aluminium & Glazing Works
Systems Used
Schuco
Year
2020
Item
Aluminium Curtain Wall
System
Schüco FWS 50 Thermally Broken – 2 Sided horizontal Cover Cap & 2 Sided vertical Structural Glazed
Item

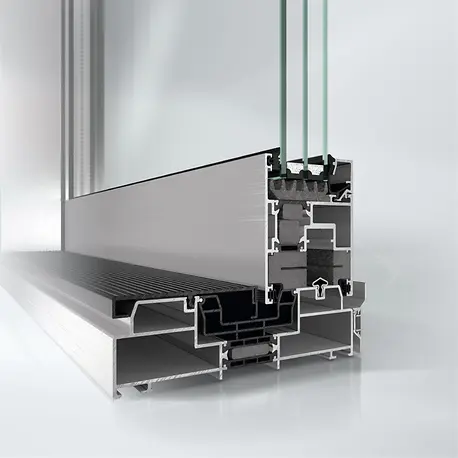

Aluminium Lift and Slide Doors
System
Schüco ASS 70.HI – Thermally Broken
Item

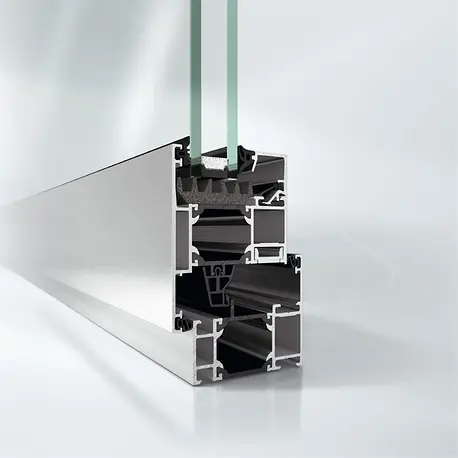

- Aluminium Tilt & Turn Windows
- Aluminium Fixed Windows
- Aluminium side hinged Windows
System
Schüco AWS 65 – Thermally Broken
Item

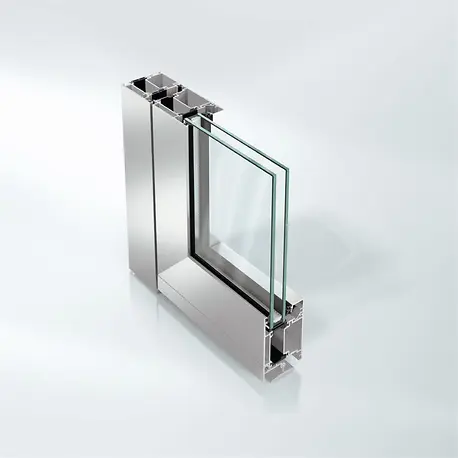

Aluminium Hinged Doors
System
Schüco ADS 65 – Thermally Broken
| Glass Code | Description |
| GL – 1 | Double Glass consists of 6 mm Sunguard SN66 Tempered + 20 mm Air Spacer + 6 mm Clear Tempered |
| GL – 2 Spandrel | Double Glass consists of 6 mm Sunguard SN 66 Tempered + 20 mm Air Spacer + 6 mm Clear with black ceramic frit coating +2 mm aluminium sheet + 50 mm rockwool with 50 kg/m3 density |
| GL – 3 | Double Glass consists of 6 mm Sunguard SN66 Tempered + 20 mm Air Spacer + 8 mm Clear Tempered |
